Blue Sea Systems Circuit Breaker Blocks - Bussed
Compact Circuit Breaker Blocks for Secure and Easy Installation

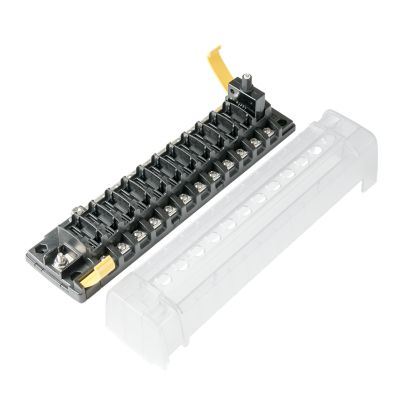

Blue Sea Systems offers a compact surface mount solution for CLB Series thermal push button reset-only circuit breakers. These circuit breaker blocks, available with 6 or 12 non-bussed circuits, feature tin-plated copper screw terminals and an ABYC/USCG-approved clear insulating cover with square format label recesses for easy organization. Designed for quick installation, the blocks have quick connect clips that allow breakers to snap securely into place. Wire access is made easy with breakouts in two directions, and optional waterproof push button boots can be installed for added protection.
These breaker blocks support up to 32V DC and a maximum of 32A per circuit, or 40A for each jumped circuit group (non-bussed). With an operating temperature range of -10°C to 60°C, they provide reliable performance across various environments. Compatible with CLB thermal push button reset-only circuit breakers (3-40A), sold separately, these blocks feature #8-32 screw terminals with captive star lock washers for secure connections, and they can be mounted with #8 screws or nuts.
- Voltage Max. Operating: 32V DC
- Amperage Max. Operating: 100A (per block - bussed)
- Temperature Operating Range: -10°C to 60°C
- Breaker Type: CLB Thermal Push Button Reset-Only Circuit Breakers with Quick Connect Terminals 3-40A. Click here to view items.
- Screw Terminal: #8-32 Screws with Captive Star Lock Washer
- Ring Terminals: Screw Terminals #8 (M4), Negative Bus #10 (M5)
- Mounting: #8 Screw (M4) or #8 Nut
- Optional Push Button Boot - Item 70500
