Blue Sea Systems ST Glass Fuse Blocks - AGC® / MDL®

Blue Sea Systems 5015-BSS fuse block with clear cover, six circuits, and grounding for enhanced electrical protection.

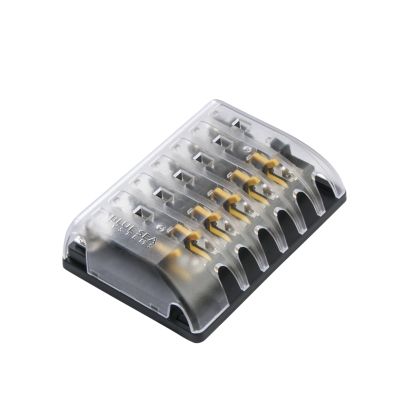

Transparent Blue Sea Systems glass fuse block with six circuits displayed.

Glass Fuse Blocks for 24-Hour Circuits with Integrated Ejector Levers and Insulation Compliance

These Blue Sea Systems glass fuse blocks are for AGC/MDL fuses and can be used for 24-hour circuits. Integrated fuse ejector levers. Clear insulating cover satisfies ABYC/USCG insulation requirements. Tin-plated phosphor bronze fuse clips are encapsulated and cannot be sprung. Removable positive bus for consolidation of in-line fuses. One-piece stainless flange nuts ensure safe and secure connections.

Maximum Amperage: 100A per Block; 30A per Circuit.
Maximum Voltage: 32VDC.
Mounting: #8 Screw (M4).
Negative Bus: 79910 Only.
Base Material: Reinforced Polycarbonate.
Cover Material: Polycarbonate.
Screw Terminal Type: #8-32 with Captive Star Lockwasher.
Accepts AGC and MDL fuses sold separately.

AGC / MDL

79910	Blue Sea Systems 5015-BSS, Glass Fuse Block with Ground, 6 Circuit, 100 Amp (1 MIN)
IN STOCK

QTY	PRICE	UOM
1+	44.76000	1EA

79911	Blue Sea Systems 5018-BSS, Glass Fuse Block, 6 Circuit, 100 Amp (1 MIN)
IN STOCK

QTY	PRICE	UOM
1+	40.28000	1EA

Item

Description

Price

Qty in Package

In Stock

Add to cart

79910

Blue Sea Systems 5015-BSS, Glass Fuse Block with Ground, 6 Circuit, 100 Amp (1 MIN)

44.76

1EA

Enter quantity for item 79910

79911

Blue Sea Systems 5018-BSS, Glass Fuse Block, 6 Circuit, 100 Amp (1 MIN)

40.28

1EA

Enter quantity for item 79911
