Metri-Pack 280 Sealed MINI®/MICRO® Combination Panel - 30 Amp, Non-Bussed

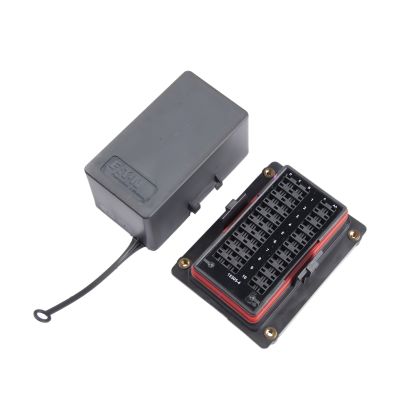

Sealed fuse and relay combination panel with cover, showcasing slots for MINI fuses and MICRO relays, gray and black design.

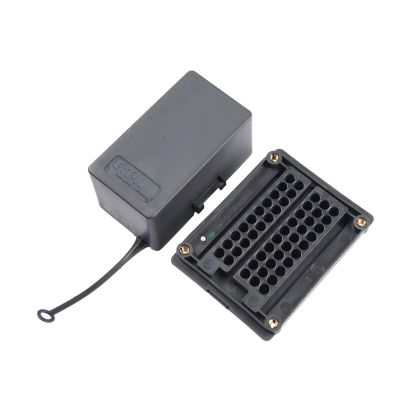

Bottomo of sealed fuse and relay combination panel with cover, showcasing slots for MINI fuses and MICRO relays, gray and black design.
Sealed fuse and relay combination panel with cover, showcasing slots for MINI fuses and MICRO relays, gray and black design.
Bottomo of sealed fuse and relay combination panel with cover, showcasing slots for MINI fuses and MICRO relays, gray and black design.

Optimize Power Distribution with Metri-Pack 280 MINI®/MICRO® Fuse and Relay Combination Panel

The sealed MINI® fuse and ISO 280 MINI® relay panel has two power distribution circuits. Circuit one is an individually powered fuse way that accepts up to ten(10) MINI® fuses. Circuit two is an individually powered fuse/relay way that accepts up to ten(10) MINI® fuses or five(5) ISO 280 MINI® relays or a combination of each. Accepts 12-22 gauge wires.

  • Fuse branches are rated up to 30 amps maximum per branch and the bussed M6 input studs are rated up to 80 amps maximum.
  • Note that the entire panel cannot exceed 160 amps (80 amps per side) maximum.
  • Metri-Pack 280 "Tangless" terminals seals and cavity plugs (sold separately).
  • Use Delphi Packard 280 Series cavity plugs 75042 where wires are not used.
  • Can be surface mounted when combined with 15303001 mounting brackets.
  • Bussed means one common power input for all circuits.
  • IP66-IEC 60529 (Valid when properly installed with cover, sealed terminals and cavity plugs).
  • Click here for the mounting brackets.
  • Click for additional specifications
INDIVIDUAL INPUTS
INDIVIDUAL INPUTS
15303404 Eaton Bussmann 15305-4-0-4, Sealed Fuse & Relay Combination Panel - Accepts 20 MINI Fuses or MINI Fuse & MICRO 280 Relays, Metri-Pack 280 Female Terminals, NON-Bussed, 30 Amp (1 MIN) DRAWING
IN STOCK
QTY PRICE UOM
1+ 33.16100 1EA
2+ 28.42100 1EA
10+ 24.05300 1EA
Item Description
Price
1+ Ext. Price 2+ Ext. Price 10+ Ext. Price
Qty in Package In Stock Add to cart
15303404 Eaton Bussmann 15305-4-0-4, Sealed Fuse & Relay Combination Panel - Accepts 20 MINI Fuses or MINI Fuse & MICRO 280 Relays, Metri-Pack 280 Female Terminals, NON-Bussed, 30 Amp (1 MIN) DRAWING
33.161 33.16 28.421 28.42 24.053 24.05
1EA
