Metri-Pack 280 Sealed MINI®/MICRO® Fuse & Relay Panel - 30 Amp, Partially Bussed

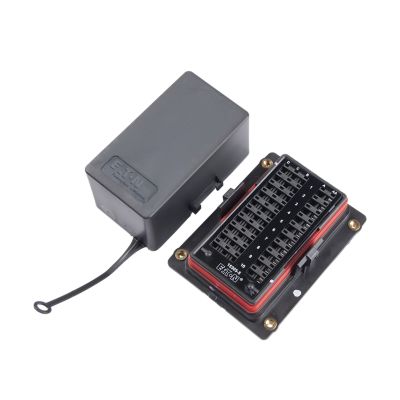

Eaton Bussmann Metri-Pack 280 sealed fuse and relay panel with cover, showcasing multiple slots for fuses and relays.

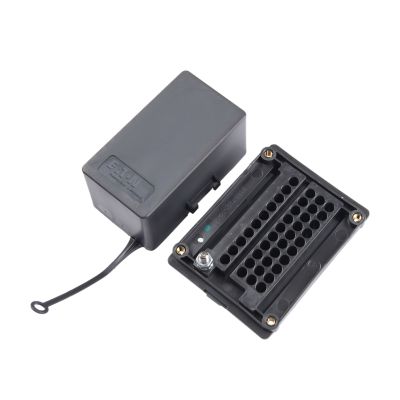

Bottom view of Eaton Bussmann Metri-Pack 280 sealed fuse and relay panel with cover, showcasing multiple slots for fuses and relays.
Eaton Bussmann Metri-Pack 280 sealed fuse and relay panel with cover, showcasing multiple slots for fuses and relays.
Bottom view of Eaton Bussmann Metri-Pack 280 sealed fuse and relay panel with cover, showcasing multiple slots for fuses and relays.

Optimized Power Distribution for MINI Fuses and Relays

The sealed MINI® fuse and ISO 280 MINI® relay panel has two power distribution circuits. Circuit one is a bussed fuse way that accepts up to ten(10) mini fuses. Circuit two is a fuse/relay way that accepts up to ten(10) MINI® fuses or five(5) ISO 280 MINI® relays or a combination of each. Accepts 12-22 gauge wires.

  • Fuse branches are rated up to 30 amps maximum per branch and the bussed M6 input studs are rated up to 80 amps maximum.
  • Note that the entire panel cannot exceed 160 amps (80 amps per side) maximum.
  • The bussed M6 input studs are rated up to 80 amps maximum.
  • Metri-Pack 280 "Tangless" terminals seals and cavity plugs (sold separately).
  • Use Delphi Packard 280 Series cavity plugs 75042 where wires are not used.
  • Can be surface mounted when combined with 15303001 mounting brackets.
  • Bussed means one common power input for all circuits.
  • IP66-IEC 60529 (Valid when properly installed with cover, sealed terminals and cavity plugs).
  • Click here for the mounting brackets.
  • Click for additional specifications
PARTIALLY BUSSED
PARTIALLY BUSSED
15303524 Eaton Bussmann 15305-5-2-4, Sealed Fuse & Relay Panel - Accepts 10 MINI Fuses & 5 MICRO 280 Relays, Metri-Pack 280 Female Terminals, Partially BUSSED, 30 Amp (1 MIN) DRAWING
IN STOCK
QTY PRICE UOM
1+ 42.74600 1EA
2+ 37.68400 1EA
10+ 32.50900 1EA
Item Description
Price
1+ Ext. Price 2+ Ext. Price 10+ Ext. Price
Qty in Package In Stock Add to cart
15303524 Eaton Bussmann 15305-5-2-4, Sealed Fuse & Relay Panel - Accepts 10 MINI Fuses & 5 MICRO 280 Relays, Metri-Pack 280 Female Terminals, Partially BUSSED, 30 Amp (1 MIN) DRAWING
42.746 42.75 37.684 37.68 32.509 32.51
1EA
