Strain Relief Cord Connectors - NPT Flex Type

Heyco strain relief cord connector, black, flexible design, ideal for securing cables in various applications.

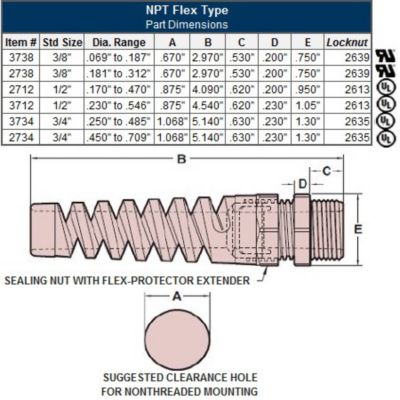

Strain Relief Cord Connector diagram with dimensions and labels for sealing nut and flex-protector features.
Heyco strain relief cord connector, black, flexible design, ideal for securing cables in various applications.
Strain Relief Cord Connector diagram with dimensions and labels for sealing nut and flex-protector features.

Ensure Lasting and Secure Connections with NPT Flex Type Wire Strain Relief Cord Connectors

Secure and protect your connections with a wire strain relief connector. These connectors are designed to secure a power supply cord to a piece of electrical equipment. With a liquid-tight seal, the wire strain relief connector securely protects the connected end of the wire. The flexible coil design of the wire strain relief connector greatly reduces wire stress at the connection point, to keep your connection healthy and lasting. This flexible body also helps prevent any cable kinking that could compromise your connection. Manufactured with nylon and a TPE gland seal, the wire strain relief connector protects from dust, salt, water, weak acids, alcohol, gas, minerals, and other oils. Easily create a secure, flexible, and long lasting connection with a wire strain relief cord connector from Del City.

  • Internationally approved: UL #E51579, CSA #93876C, IP 68.
  • Liquid tight, optimum seal connector with vibration proof protection (up to 70 psi).
  • Resistant to salt water, weak alkalis, alcohol, gasoline, grease, and common solvents.
  • Working Temperature: -4° F(-20°C) to 212°F (100°C).
  • Locknuts not included.
2738 Heyco 3254, Strain Relief Cord Connectors - 3/8" (.181" - .312") - Flex (1 MIN) DRAWING
IN STOCK
QTY PRICE UOM
1+ 2.20600 1EA
500+ 1.84582 1EA
1,000+ 1.69200 1EA
2712 Heyco 3251, Strain Relief Cord Connectors - 1/2" (.170" - .470") - Flex (1 MIN) DRAWING
IN STOCK
QTY PRICE UOM
1+ 2.85700 1EA
500+ 2.54618 1EA
1,000+ 2.33400 1EA
3712 Heyco 3266, Strain Relief Cord Connectors - 1/2" (.230" - .546") - Flex (1 MIN) DRAWING
IN STOCK
QTY PRICE UOM
1+ 2.85700 1EA
500+ 2.37818 1EA
1,000+ 2.18000 1EA
3734 Heyco 3462, Strain Relief Cord Connectors - 3/4" (.250" - .485") - Flex (1 MIN) DRAWING
IN STOCK
QTY PRICE UOM
1+ 5.30400 1EA
500+ 4.82182 1EA
1,000+ 4.42000 1EA
2734 Heyco 3239, Strain Relief Cord Connectors - 3/4" (.450" - .709") - Flex (1 MIN) DRAWING
IN STOCK
QTY PRICE UOM
1+ 5.28900 1EA
500+ 4.64727 1EA
1,000+ 4.26000 1EA
Item Description
Price
1+ Ext. Price 500+ Ext. Price 1,000+ Ext. Price
Qty in Package In Stock Add to cart
2738 Heyco 3254, Strain Relief Cord Connectors - 3/8" (.181" - .312") - Flex (1 MIN) DRAWING
2.206 2.21 1.84582 1.85 1.692 1.69
1EA
2712 Heyco 3251, Strain Relief Cord Connectors - 1/2" (.170" - .470") - Flex (1 MIN) DRAWING
2.857 2.86 2.54618 2.55 2.334 2.33
1EA
3712 Heyco 3266, Strain Relief Cord Connectors - 1/2" (.230" - .546") - Flex (1 MIN) DRAWING
2.857 2.86 2.37818 2.38 2.18 2.18
1EA
3734 Heyco 3462, Strain Relief Cord Connectors - 3/4" (.250" - .485") - Flex (1 MIN) DRAWING
5.304 5.30 4.82182 4.82 4.42 4.42
1EA
2734 Heyco 3239, Strain Relief Cord Connectors - 3/4" (.450" - .709") - Flex (1 MIN) DRAWING
5.289 5.29 4.64727 4.65 4.26 4.26
1EA
