Strain Relief Cord Connectors - PG Flex Type

Black strain relief cord connector, featuring a threaded body and flexible design, used for secure cable management.

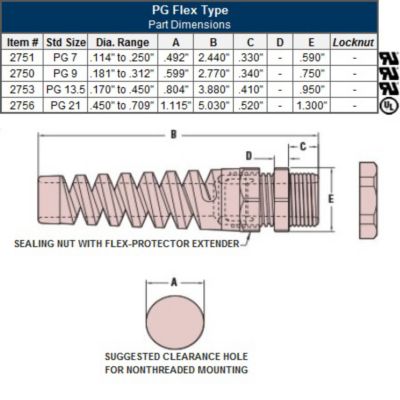

Strain Relief Cord Connectors diagram, showcasing PG Flex Type dimensions and components, including sealing nut and protector extender.

Unique Flexible Strain Relief Cord Connectors to Prevent Cable Kinking and Extend Cable Life

The flexible strain relief cord connector is unique because it features a partially flexible body that helps prevent cable kinking and sharp bends which extends cable life. It is recommended to use the cordgrip with the smallest maximum diameter that will fit your application. Flamability Rating: 94V-2.

Liquid tight strain relief cord connectors feature vibration proof protection (up to 70 psi) and an optimum seal.
Internationally approved: UL #E51579, CSA #93876C, IP 68.
Resistant to salt water, weak acids, alcohol, gasoline, oil, grease, and common solvents.
PG hub threads are steel conduit threads per DIN 40430.
Working Temperature: -4° F(-20°C) to 212°F (100°C).
Unassembled Nylon Locknut INCLUDED.

NPT FLEX TYPE STD NPT THREAD NPT NUTS PG FLEX TYPE STD PG THREAD SEALING WASHER

NPT FLEX TYPE

STD NPT THREAD

NPT NUTS

PG FLEX TYPE

2751	Heyco 3237, Strain Relief Cord Connectors - PG 7 Flex (.114" - .250") (1 MIN)
IN STOCK

QTY	PRICE	UOM
1+	3.21600	1EA
500+	2.92364	1EA
1,000+	2.68000	1EA

2750	Heyco 3240, Strain Relief Cord Connectors - PG 9 Flex (.181" - .312") (1 MIN)
IN STOCK

QTY	PRICE	UOM
1+	2.53600	1EA
500+	2.02909	1EA
1,000+	1.86000	1EA

2753	Heyco 3246, Strain Relief Cord Connectors - PG 13.5 Flex (.170" - .450") (1 MIN)
Call for Stock Availability

QTY	PRICE	UOM
1+	3.42240	1EA
500+	3.11127	1EA
1,000+	2.85200	1EA

2756	Heyco 3245, Strain Relief Cord Connectors - PG 21 Flex (.450" - .709") (1 MIN)
IN STOCK

QTY	PRICE	UOM
1+	5.41300	1EA
500+	4.87855	1EA
1,000+	4.47200	1EA

Item

Description

Price
1+	Ext. Price	500+	Ext. Price	1,000+	Ext. Price

Qty in Package

In Stock

Add to cart

2751

Heyco 3237, Strain Relief Cord Connectors - PG 7 Flex (.114" - .250") (1 MIN)

3.216

3.22

2.92364

2.92

2.68

1EA

Enter quantity for item 2751

2750

Heyco 3240, Strain Relief Cord Connectors - PG 9 Flex (.181" - .312") (1 MIN)

2.536

2.54

2.02909

2.03

1.86

1EA

Enter quantity for item 2750

2753

Heyco 3246, Strain Relief Cord Connectors - PG 13.5 Flex (.170" - .450") (1 MIN)

3.4224

3.42

3.11127

3.11

2.852

2.85

1EA

Call

Enter quantity for item 2753

2756

Heyco 3245, Strain Relief Cord Connectors - PG 21 Flex (.450" - .709") (1 MIN)

5.413

5.41

4.87855

4.88

4.472

4.47

1EA

Enter quantity for item 2756

STD PG THREAD

SEALING WASHER
