InPower VCM-02 Series Solid State Relay - Alternating, 15A-24V
Enhancing Circuit Control with InPower VCM-02 Series Relay 15A-24V Output

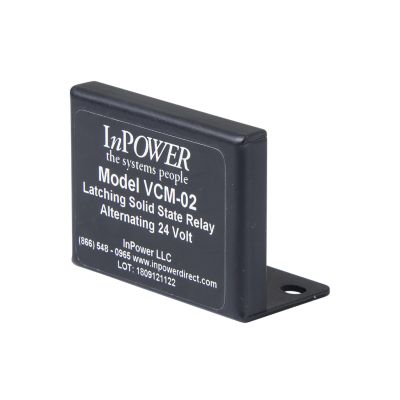

The InPower VCM-02 is a completely solid-state alternating latching relay with a single 24 volt @ 15 amp output. The module has two inputs: Input A actuated by a transition to 24 volts and Input B actuated by a transition to ground. The output will toggle to the opposite state when 24 volts is applied to Input A while Input B is open, or when ground is applied to Input B when Input A is open. Another toggle will not be recognized until both inputs are open. To toggle the module's output, a control input signal must be applied for at least 250 milliseconds with its counterpart input open. All control inputs must be removed for at least one second before the module will recognize another toggle control input. When 24 volts is first applied to its power terminal the module will initialize in the output off state. The output is rated at 24 volts @ 15 amps and provides over current and short circuit shut down protection. For more step-by-step instructions, please click on the InPower datasheet below.
- Operating Temperature: -40°C to + 85° C (-40°F to 185°F).
- Dual inputs one actuated by a transition to 24 volts (Input A). One actuated by transition to ground (Input B).
- Inputs operate as a logical "Exclusive OR" so that either input can cause the output to latch/unlatch.
- Terminals: (5) 1/4" blades.
- Dimensions: 1.75" x 2.30" x 1.25"
- Output Rating: 15A, Input Volts: 24V.
- Compact size with panel-mount bracket.
- Utilizes standard automotive relay pin format.
- Designed to withstand harsh environments on trucks, emergency vehicles, buses, coaches and specialty vehicles.
- Manufactured in the USA.
- Click here for the VCM-02 series product data sheet
