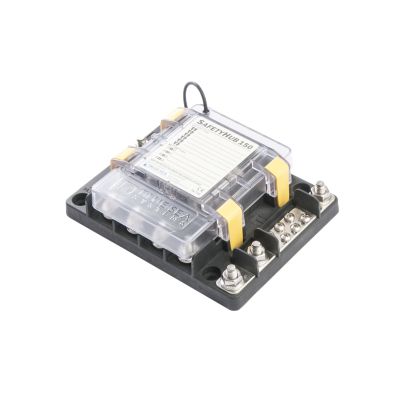

Blue Sea Systems SafetyHub 150 Fuse Block with Cover - 10-Way
Ignition Protected 10-Way Fuse Block for Safe and Efficient Marine Use
The Blue Sea Systems SafetyHub fuse block is an ignition protected fuse block with screw termination. It is safe for use on gasoline powered equipment such as boats, reduces wire connections and consolidates up to ten fused circuits. Accepts four MIDI® fuses for high-amp circuits up to 200A. Accepts six ATO/ATC® fuses for circuits up to 30A. Sealed cover protects fuses from harsh environments and satisfies ABYC/USCG insulation requirements. Negative bus provides common location for negative connections. Circuit identification label with write-on capability. Fuse puller easily removes ATO/ATC® fuses. Cover provides storage space for two spare ATO/ATC® and two spare MIDI fuses and mounting screws. One-piece stainless flange nuts ensure safe and secure connections.
Products on this page may be available in bulk, please call for a quote
- Voltage Max: 32VDC.
- Amperage Max (combined): 280A.
- Amperage Max MIDI®: 280A per block; 170A per circuit.
- Amperage Max ATO/ATC®: 50A per block; 25A per circuit.
- Minimum cable size to meet ratings (whole block): 4/0 AWG; MIDI® fuse block: 2/0 AWG.
- Stud Size (whole block): M8; MIDI fuse block: M5; ATC/ATO® block: #8-32.
- Meets ISO 8846, SAE J1171, IP66.
- MIDI®/AMI® Fuses sold separately.
- ATO/ATC® Fuses sold separately.
