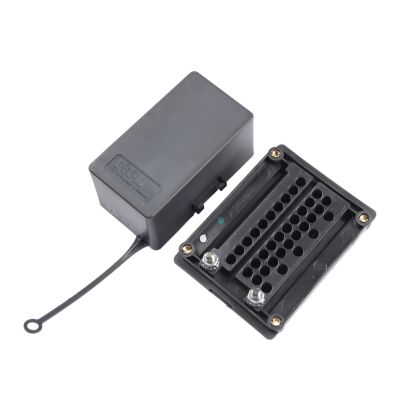

Metri-Pack 280 Sealed MINI®/MICRO® Fuse & Relay Panel - 30 Amp, Bussed

Efficient Power Distribution with Metri-Pack 280 Sealed MINI Fuse & Relay Panel

The sealed MINI® fuse and ISO 280 MICRO® relay panel features two integrated power distribution circuits designed for efficiency and reliability. The first circuit consists of a bussed fuse section capable of accommodating up to ten (10) MINI® fuses (sold separately), enabling streamlined protection across multiple connections. The second circuit incorporates a bussed relay section that supports up to five (5) ISO 280 MICRO® relays (sold separately), allowing for flexible and centralized control of electrical loads. The panel is compatible with 12–22 AWG wiring, offering versatility for a wide range of automotive and power distribution applications.

• Plug-in component capacity: 5 Bussed (35 Amp) 280 MICRO® relays along with 10 MINI® bussed fuses/circuit breakers (2.8mm blade / 8.1mm center line, up to 30 Amp) (sold separately)
• Input terminal rating: M6 input studs on bussed/partially bussed inputs. 80A max input on bussed fuse side, 80A max input on bussed relay side.
• Output terminal rating: 2.8mm blade terminals (30A max per terminal), temperature dependent
• Bussed means one common power input for all circuits.
• Weathertight with cover (Tall Cover included- Cover is tall enough for mini "plugin" style breakers)
• Bussed means one common power input for all circuits.
• 5x – 280 MICRO® Relays with 10x MINI® Bussed Fuses (not included)
• Wire size: Accepts #12-22 AWG wire sizes
• Mounting torque rating: #10-32 or M5 threaded inserts; 24in-lbs max
• Input stud torque rating: 50in-lbs max
• Temperature rating: -40°C (-40°F) to 125°C (260°F) - rating on PDM
• Material: 94V-0 thermoplastic, tin-plated copper internal bus bar, bright nickel-plated brass studs (on bussed versions), silicone rubber gasket, EPDM - internal tether
• Note that the entire panel cannot exceed 160 amps (80 amps per side) maximum.
• IP66-IEC 60529 (Valid when properly installed with cover, sealed terminals and cavity plugs).
• Dimension with cap installed: 4.300"H x 3.300"W x 2.710"D
• Click here for the mounting brackets.
• Metri-Pack 280 "Tangless" terminals, seals and cavity plugs (sold separately).
• Use Delphi Packard 280 Seriescavity plugs 75042 where wires are not used.
• Can be surface mounted when combined with 15303001 mounting brackets.
