InPower Low Voltage Disconnect Relays - Automatic

Automatic Low Voltage Disconnects for Engine Protection and Battery Conservation

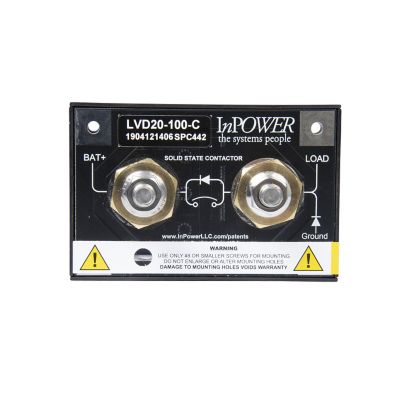

InPower's LVD20 Series Low Voltage Disconnects (LVD) automatically disconnect 12 volt loads from the battery when the battery voltage drops below a critical level. Disconnecting loads prevents excessive battery discharge, thereby reserving a sufficient charge to restart the engine. The LVD contains a solid state disconnect switch that is rated for 100, 150, or 200 amps, and provides automatic fault shutdown protection for over current, short circuit, high temperature and loss of ground conditions. In the event of an under voltage or fault shutdown the disconnect switch will remain latched off. When the fault is cleared the control input voltage must be removed and re-applied to activate the disconnect switch. For more step-by-step instructions, please click on the InPower datasheet below.

• Operating Temperature: -40°C to + 85° C (-40°F to 185°F).
• 75926 - Output Rating: 100A, 75927- Output Rating: 200A Input Volts: 12V.
• Prevents excessive battery discharge by automatically disconnecting loads.
• 100% solid state design - no moving parts to cause arcing and electrical noise.
• Manufactured in the USA.
• Click here for the LVD20 series product data sheet
