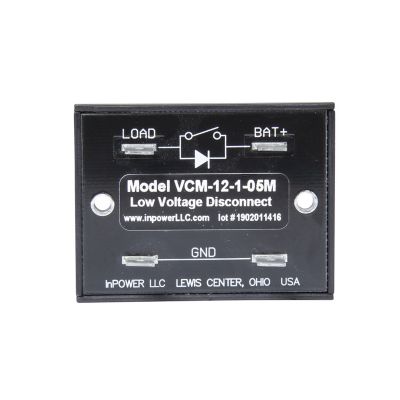

InPower VCM-12 Series Low Voltage Disconnect Relay - Delayed, 5 Min Timer
Enhanced Power Protection with InPower VCM-12 Series Low Voltage Disconnect for 12 Volt Vehicle Applications
InPower VCM-12 Series are solid state low voltage disconnects for 12 volt vehicle applications. Their 4-wire terminal configuration allows easy installation with two-conductor power cables typically used with 12 volt power point supplies. VCM-12 LVD's protect against draining the battery when the engine is not running by automatically disconnecting loads when the battery voltage reaches a critical level. The LVD modules contains a microprocessor controller and a solid state 20 amp power switch for powering the output loads. The output provides over current fault shut down protection. The LVD continuously monitors the voltage level of the 12 volt power input. For more step-by-step instructions, please click on the InPower datasheet below.
- Operating Temperature: -40°C to + 85° C (-40°F to 185°F).
- Output Rating: 20A, Input Volts: 12V.
- Fixed 5 minute shut-off timer.
- Over-current shut off.
- 4-wire terminal configuration.
- Dimensions: 1.75" x 2.30" x 0.65"
- Electronic, solid state design means no moving parts to wear-out.
- Designed to withstand harsh automotive environments.
- Compact size with panel-mount bracket.
- Manufactured in the USA.
- Click here for the LVD20 series product data sheet
