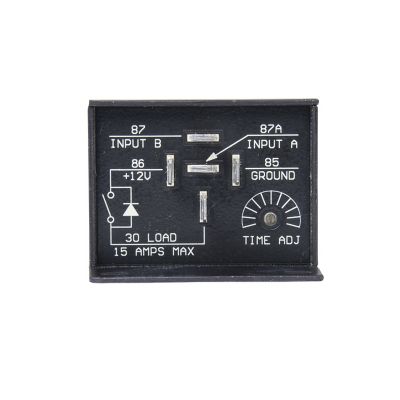

InPower VCM-03 Series Adjustable Time Delay Relay - 0-10 Seconds
On-Delay Timer Relay with Adjustable Settings for Dual Input Activation
InPower's VCM-03 Series On-Delay Timer is a completely solid-state timer relay with a 12 volt @ 15 amp output. The module contains two inputs, one activated by a transition to 12 volts (Input A) and one activated by a transition to ground (Input B). The two inputs operate as a logical "Exclusive OR" so that either input can operate the timer. The timer will start when 12 volts is applied to Input A while Input B is off, or when ground is applied to Input B while Input A is off. The input must be maintained to operate the timer. If removed during the timer operation (before the timer expires) the operation will reset. Activating either input starts the timer. The output turns on when the timer expires and will remain on until the input is removed. Fixed and adjustable time settings are available. Adjustable time values are set using a single-turn potentiometer. For more step-by-step instructions, please click on the InPower datasheet below.
- Time Delay: 0-10 seconds.
- Operating Temperature: -40°C to + 85° C (-40°F to 185°F).
- Adjustable on-delay timer.
- Terminals: (5) 1/4" blades.
- Dimensions: 1.75" x 2.30" x 1.25"
- Output Rating: 15A, Input Volts: 12V.
- Utilizes standard automotive relay pin format.
- Designed to withstand harsh automotive environments.
- Electronic, solid state design means no moving parts to wear-out.
- Manufactured in the USA.
