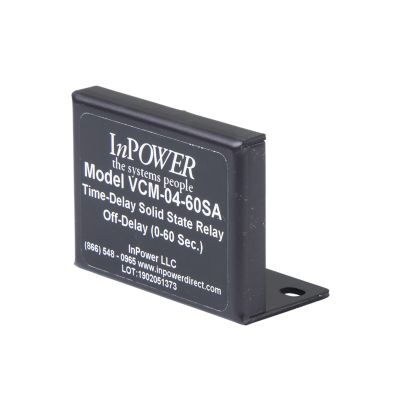

InPower VCM-04 Series Adjustable Time Delay Relay - 0-60 Seconds
InPower VCM-04 Series Timer Relay with Dual Input Logic and 12V Output
InPower's VCM-04 Series Off-Delay Timer is a completely solid-state timer relay with a 12 volt @ 15 amp output. The module contains two inputs, one activated by a transition to 12 volts (Input A) and one activated by a transition to ground (Input B). The two inputs operate as a logical Exclusive OR so that either input can operate the timer. The output is activated when 12 volts is applied to Input A while Input B is off, or when ground is applied to Input B while Input A is off. The timer starts when the input signal is removed. When the timer expires the output is turned off and the operation is complete. For more step-by-step instructions, please click on the InPower datasheet below.
- Time Delay: 0-60 seconds.
- Operating Temperature: -40°C to + 85° C (-40°F to 185°F).
- Adjustable on-delay timer.

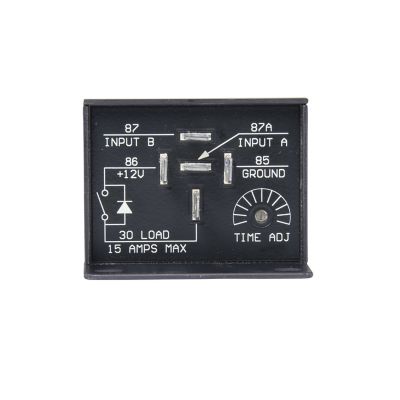

- Terminals: (5) 1/4" blades.
- Dimensions: 1.75" x 2.30" x 1.25"
- Output Rating: 15A, Input Volts: 12V.
- Utilizes standard automotive relay pin format.
- Designed to withstand harsh automotive environments.
- Electronic, solid state design means no moving parts to wear-out.
- Manufactured in the USA.
- Click here for the VCM-04 series product data sheet
