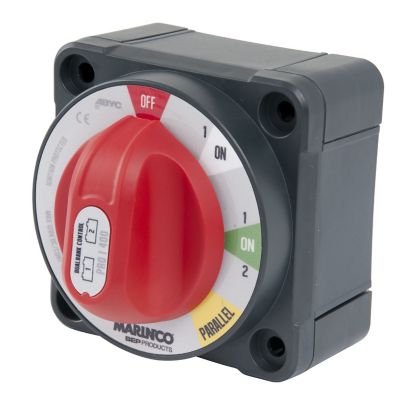

BEP Pro Installer Standard Dual Bank Battery Switch
Compact dual bank switch combining three functions with flexible mounting and superior marine reliability.
BEP ProInstaller Standard Dual Bank Battery Switches are a powerful new generation of battery switches with outstanding performance and features for both the installer and end user. These innovative (patented) switches combine the functions of 3 battery switches into one to intuitively manage 2 battery banks and 2 loads. A unique safety position isolates one load e.g. House “On”, Start “Off” in case of engine malfunction, so an emergency radio call can still be made. Three mounting options: surface, rear panel and front panel mounting, plus optimised cable access makes installation a breeze. Significant savings in both space and installation cost can be made, without compromising functionality or safety.
- Connection stud size: M10 (3/8”)
- Standard Mount Design: Surface, Rear or Front Mount
- Disconnect battery positive leads at the batteries for safety while installing switch
- 1, 1/2, Parallel, Off Selector for dual battery bank control
- Includes back cover and three side panels for security and cable protection
- Designed to withstand harsh marine environments
- Operating Temperature: -5°F to +131°F (-15°C to +55°C)
- Dimensions: 3.85"x3.85"x3.62"
- Meets UL1107 ignition protected, CE, IP66 standards
- Continuous rating: 400 Amps, 12-48V DC
- Intermittent rating: 600A
- BEP 772 Series Dual Bank Standard Mount instruction manual
