Blue Sea Systems M-Series Battery Switches - 3 Position
Efficient and Durable Blue Sea Systems M-Series 3 Position Battery Switches for Optimal Connectivity

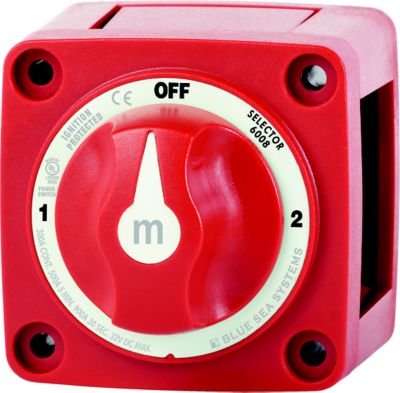

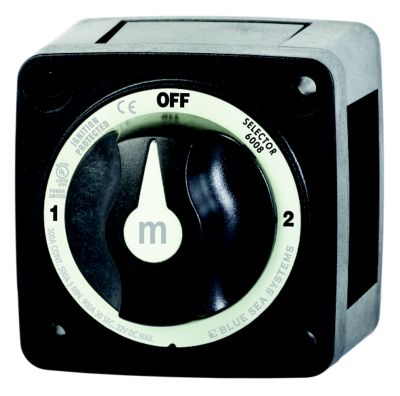

These three position Blue Sea Systems battery switches offer 300 Amps for outboards and small gasoline or diesel engines. These switches switch isolated battery banks to all loads or combines battery banks to all loads and feature tin-plated copper studs for maximum conductivity and corrosion resistance. The studs accept 3/8" (M10) ring terminals and have a 7/8" stud length (22 mm) that can accept multiple cable terminals. Blue Sea Systems one-piece terminal stud design never loosens over time. One-piece stainless flange nuts ensure safe and secure connections. Isolating cover with three snap-in side pieces protects rear contacts and allows easy wire access in any direction. Case design allows surface, rear or front panel mounting options.
- Cranking Rating (30 sec.): 900A
- Intermittent Rating (5 Min.) 500A
- Continuous Rating: 300A @ 32V DC Maximum
- CE marked, ISO 8846, UL listed - UL1107 electrical power switches.
- Meets ABYC requirements and UL 1500, SAE J1171 external ignition protection requirements.
- IP66
- Mounting Holes: Accept #10 Screw
- Maximum Voltage: 32V DC
