DEUTSCH DTV Series Plug - 18-Way

Deutsch DTV06-18SA connector, 18-way plug with a gray casing, featuring multiple round sockets for electronic connections.

DEUTSCH DTV Series 18-way plug connector with a rectangular shape and multiple pin openings, labeled for easy identification.

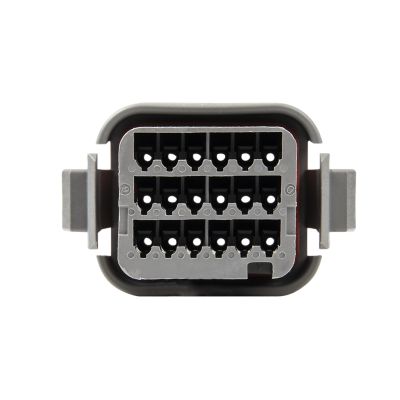

DEUTSCH DTV Series 18-Way Plug with durable design and multiple slots for secure connections.

Durable and Flexible DEUTSCH DTV Series 18-Way Connectors for Moisture Resistance and Temperature Variability

DEUTSCH DTV Series connectors offer the same time tested reliability and performance as the DT series, with the added flexibility of an 18 cavity flanged design. Utilizing thermoplastic housings and silicone rear wire and interface seals, they are extremely durable and able to withstand exposure to moisture and a wide temperature range.

To complete a plug assembly, you will need:
One (1) 18-way plug housing
One (1) 18-way plug wedge
Eighteen (18) plug socket contacts

Complete plug assembly and receptacle assembly are required to complete the system.
Sealing Plugs can be used in place of any unoccupied socket contact.
Operating Temperature: -55°C to 125°C (-67°F to 257°F).
IP68 immersion rating.
Accepts size 16 contacts (14-20 ga, 13 amps).
