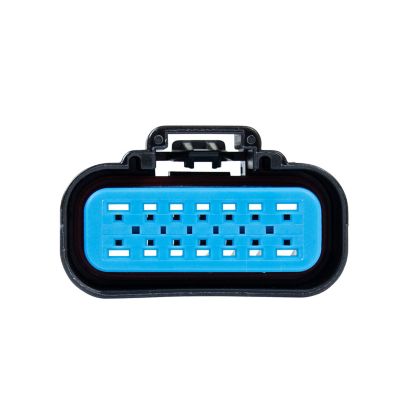

GT 150/280 Mixed Series Female Housing - 14-Way
Optimized Connection System for Vehicle Space Efficiency with GT 150/280 Mixed Series Female Housing Configuration
Delphi's GT 150/280 Mixed Connection System has a small package size suited to fit the shrinking space requirements of today's vehicles. The GT 150/280 Female housings are available in 14 and 16-way configurations. Mixed connectors feature a combination of different cavities for GT 150 (15 Amps) and 280 (25 Amps) series terminals. The GT 280 Series terminal cavities are located at the outer four cavities. For a complete connection, a female housing, male housing, male and female terminals, cable seals, cavity plugs and TPAs are required, sold separately.
To complete the female connection, you will need:
Four (4) GT 280 Female Terminals
Four (4) GT 280 Cable Seals
Ten (10) GT 150 Female Terminals
Ten (10) GT 150 Cable Seals
One (1) CPA GT Series CPA
- Operating temperature range: -40°C to 125°C (-40°F to 257°F).
- The GT Connection System satisfies ISO, USCAR, and SAE J2030 electrical, mechanical and environmental performance criteria.
- GT 150/280 Mixed Series rated 15/25 Amps.
- GT 280 Series terminal cavities are located at the outer four cavities.
- Two rib seal design uses less material without impacting performance.
- Seal retention and protection features help prevent loss or damage to connector seal.
- Low engagement force improves reliability, ergonomics, and installation efficiency.
- RoHS Compliant.
