GT 15 Female Housing - 4-Way & 5-Way

Aptiv GT 150 4-Way Connector with black casing and purple interface, showcasing female housing design features.

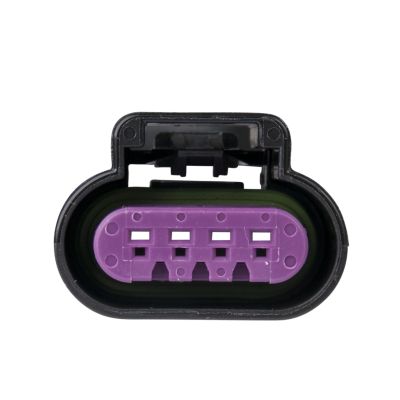

GT 15 female housing connector with visible 5-way socket design, featuring a purple insert and black exterior.

Black GT 15 female housing connector showing 4-way and 5-way slots, designed for secure electrical connections.

Female GT 150 5-way connector housing, black exterior with purple internal component, designed for electrical applications.

GT 15 Female Housing connector with 4-way and 5-way configuration, featuring a sturdy purple and black design.

Compact GT 150 Connection System for Vehicle Space Optimization

Delphi's GT 150 Connection System has a small package size suited to fit the shrinking space requirements of today's vehicles. The GT 150 Female housings are available in 2, 3, 4, 5, 6, 8, 10, 12, 14 and 16-way configurations. For a complete connection, a female housing, male housing, male and female terminals, cable seals, cavity plugs and TPAs are required, sold separately.

Operating temperature range: -40°C to 125°C (-40°F to 257°F).
The GT Connection System satisfies ISO, USCAR, and SAE J2030 electrical, mechanical and environmental performance criteria.
Rated to 15 Amps.
Two rib seal design uses less material without impacting performance.
Seal retention and protection features help prevent loss or damage to the connector seal.
Low engagement force improves reliability, ergonomics, and installation efficiency.
RoHS Compliant.
Male Housing, Terminals, Cable Seals/Cavity Plugs needed to complete the connection are sold separately.
