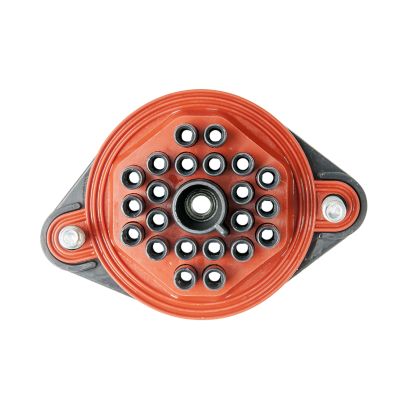

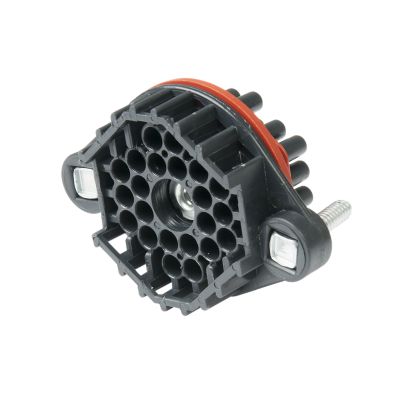

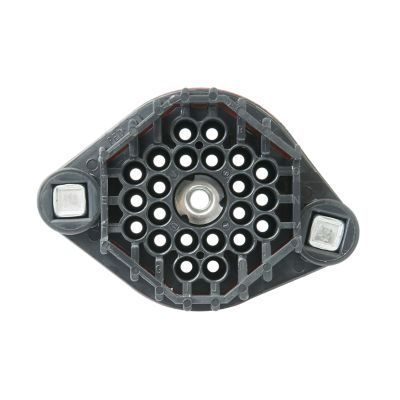

Weather Pack 22-Way Bulkhead Connector - Female
Weatherproof 22-Way Bulkhead Connection System for Harsh Environments
The Weather Pack Bulkhead Connector system from Delphi/Packard creates a weather-proof through-panel connection for up to 22 wires and 20 Amps. Weather Pack connectors are commonly known to be environmentally sealed and ideally suited for use in harsh environments. This statement remains true with the Bulkhead Connector system as well. These connectors are resistant to extreme temperatures, chemicals, and fluids to keep your connections secure and protected.
To complete a female Bulkhead Connector assembly, you need:
One (1) female bulkhead connector
Two (2) TPA comb locks
Twenty-Two (22) female terminals
Twenty-Two (22) cavity seals.
- Through-panel connection for up to 22 wires.
- Maximum current rating: 20 Amps.
- Temperature range: 40°C to 125°C.
- RoHS Compliant.
- Click here for installation instructions.
