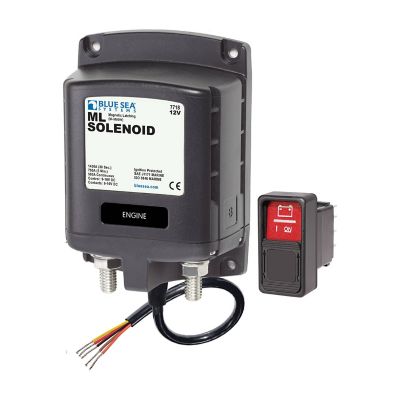

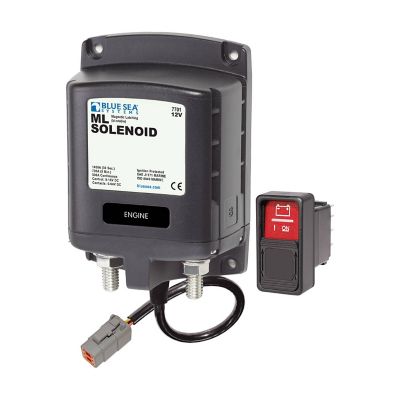

Blue Sea Systems ML-Series Solenoid, 500 Amp - 12V
500 Amp Magnetic Latching Solenoids for High-Performance Multi-Voltage Systems
Blue Sea Systems ML-Series Solenoids are 500 Amp magnetic latching solenoids, designed for high-performance switching under load without requiring manual control. These solenoids are equipped with 3/8"-16 tin-plated copper studs, ensuring maximum conductivity and corrosion resistance. The silver alloy contacts provide reliable switching for live loads, making them ideal for applications like engine, inverter, and emergency battery combines.
With an LED output for remote switch state indication, these solenoids can be monitored via an optional LED or Remote Control Contura Switch with integrated LED (Del #5456). The magnetic latching design draws no current in the "ON" or "OFF" state, consuming power only when switching the solenoid’s state. Now rated up to 64V DC for contact voltage, these solenoids are perfect for multi-voltage systems such as solar or golf carts, maintaining the standard 12V or 24V DC control voltage while supporting up to 2,000 live-switching cycles at maximum operating voltage, tested to UL 1107 standards.
The ML-Series is designed for heavy-duty applications, providing reliable and efficient switching across a range of voltage systems.
- Nominal Control Voltage: 12V or 24V
- Operating Voltage (contacts): 0-64V, or 9-16V or 18-32V depending on part number
- Solenoid accessories can be found here.
- 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
- LED output to remotely indicate switch state - requires optional LED or Remote Control Contura Switch w/LED (includes Contura Switch Del #5456 (BSS 2145))
- Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
- Silver alloy contacts provide high reliability for switching live loads
- 3/8"-16 Tin-plated Copper studs. 0.875" (22.23 mm) stud length accepts multiple cable terminals.
- One-piece stainless flange nuts ensure safe and secure connections. Label recesses for circuit identification.
- CE marked, meets ISO 8846 and SAE J1171 external ignition protection requirements IP66 - protected against powerful water jets
- Download data sheet for 5465 and 5467 here.
