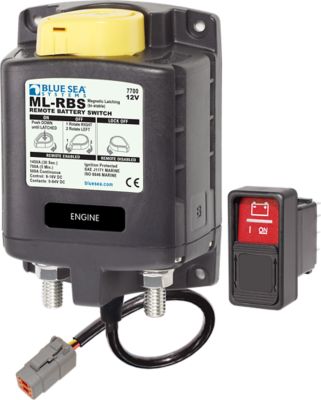

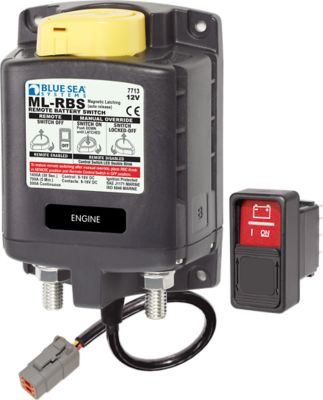

Blue Sea Systems ML-RBS Remote Battery Switch With Manual Control - 12V
High-Amperage Blue Sea Systems ML-RBS Remote Battery Switch for Multi-Voltage Systems
Blue Sea Systems ML-RBS Series Remote Battery Switches are 500 Amp magnetic latching switches which provide high amperage switching under load, manually or from remote locations. The manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing. These are manufactured with 3∕ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance. The silver alloy contacts provide high reliability for switching live loads. A number of ML-Series Remote Battery Switches are now rated to 64V DC, making them ideal for use in 36V DC and 48V DC nominally-rated systems. The new 64V DC rating applies only to the contact voltage, while maintaining the existing 12VDC or 24V DC control voltage, making them ideal for use in multi-voltage systems like solar or golf-carts. The new higher voltage rating was tested to 2,000 live-switching cycles at maximum operating voltage per UL 1107 requirements.
Products on this page may be available in bulk, please call for a quote
- LED output to remotely indicate switch state - requires optional LED.
- 3∕ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance.
- Label recesses for circuit identification.
- Silver alloy contacts provide high reliability for switching live loads.
- Control Circuit Connection: Tinned Wire
- Mechanical Endurance: 100,000 Cycles
- Minimum Operating Temperature: -10° C
- Maximum Operating Temperature: 60° C
- Battery switch accessories can be found here.
- Download data sheet here.
