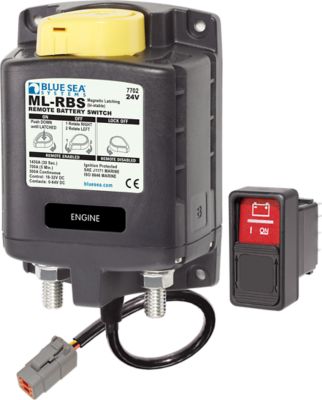

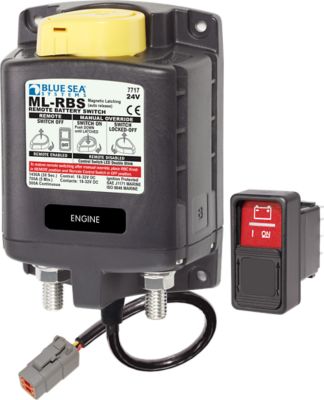

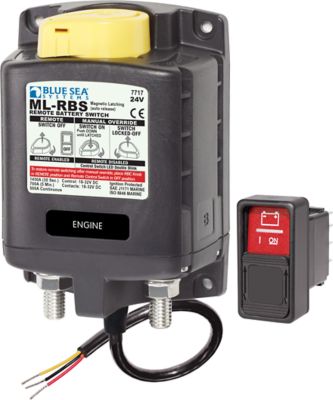

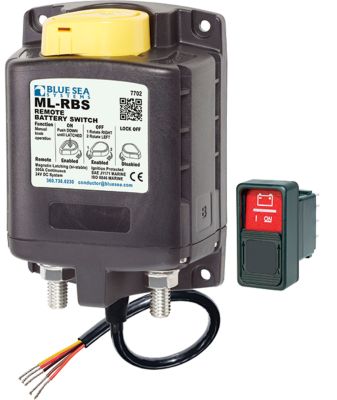

Blue Sea Systems ML-RBS Remote Battery Switch With Manual Control - 24V
Blue Sea Systems ML-RBS Remote Battery Switches for High Amperage and Multi-Voltage Systems
Blue Sea Systems ML-RBS Series Remote Battery Switches are 500 Amp magnetic latching switches which provide high amperage switching under load, manually or from remote locations. The manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing. These are manufactured with 3∕ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance. The silver alloy contacts provide high reliability for switching live loads. A number of ML-Series Remote Battery Switches are now rated to 64V DC, making them ideal for use in 36V DC and 48V DC nominally-rated systems. The new 64V DC rating applies only to the contact voltage, while maintaining the existing 12VDC or 24V DC control voltage, making them ideal for use in multi-voltage systems like solar or golf-carts. The new higher voltage rating was tested to 2,000 live-switching cycles at maximum operating voltage per UL 1107 requirements.
- Nominal Control Voltage: 12V or 24V
- Operating Voltage (contacts): 0-64V, or 9-16V or 18-32V depending on part number
- Manual override knob provides an added level of safety allowing control with or without power
- LED output to remotely indicate switch state - requires optional LED or Remote Control Contura Switch w/LED
- Silver alloy contacts provide high reliability for switching live loads
- 3/8"-16 Tin-plated Copper studs for maximum conductivity and corrosion resistance.
- 7∕ 8" (22 mm) stud length accepts multiple cable terminals
- One-piece stainless flange nuts ensure safe and secure connections
- CE marked, Meets ISO 8846 and SAE J1171 external ignition protection requirements IP66 - protected against powerful water jets
- Battery switch accessories can be found here.
- Download data sheet here.
